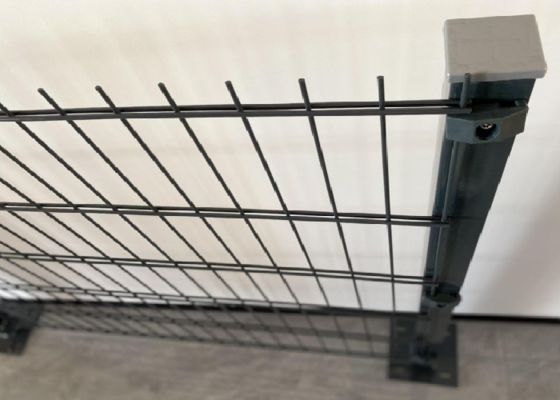

Corrosion-Proof Double Horizontal Wire Guardrail for Scenic Spot Trail Protection

Corrosion-Proof Double Horizontal Wire Guardrail for Scenic Spot Trail Protection

Double Loop Wire Fencing - Reinforced Structure for Scenario-Specific Partition & Protection:

Double Loop Wire Guardrail features a core design of "upper and lower parallel double horizontal wires". Different from traditional single horizontal wire guardrails, it uses 4.0-5.0mm thickened horizontal wires and 3.0-3.8mm vertical wires for welded reinforcement, increasing load capacity by over 60%. It also adds scenario-specific functions: municipal road models have anti-glare coating (light reflectivity ≤30%) to avoid nighttime headlight glare affecting driving; factory workshop models use anti-static coating to prevent static damage to precision equipment; scenic spot trail models adopt 304 stainless steel + anti-corrosion treatment to resist outdoor humidity and tourist friction. Its modular design enables quick splicing, meeting both long-distance isolation for municipal projects and flexible partitioning for warehouses and workshops, making it a cost-effective choice for multi-scenario security.

Specification Table:

Double Loop Wire Fencing Features:

Anti-Glare for Municipal Roads:Anti-glare PVC coating reduces light reflectivity to ≤30%—a test on a Chinese municipal road showed nighttime traffic accidents related to headlight glare decreased by 45% after installation. The green coating also matches road green belts, improving urban aesthetics.

High Load & Durability:Double horizontal wires (4.0-5.0mm) + robot welding (weld strength ≥300MPa) ensure horizontal load ≥800N.

Fast Partition for Warehouses:Modular panels (2.0m×1.0m standard) can be assembled without professional tools.

Double Loop Wire Fencing Production Process:
Wire Preparation:Q235/304 stainless steel wires are drawn to specified diameters (horizontal: 4.0-5.0mm, vertical: 3.0-3.8mm) and straightened (straightness error ≤0.5mm/m) to ensure uniform panel size.
Surface Treatment:- Galvanizing: Panels are hot-dip galvanized (zinc coating 600-800g/㎡) for corrosion resistance. - Special coating: Anti-glare models are sprayed with matte PVC; anti-static models are coated with conductive paint.
Panel Cutting & Reinforcement:Welded panels are cut to standard lengths (2.0-3.0m) and edge wires (5.0mm diameter) are added to prevent sharp edges from scratching users.
Performance Testing:Each batch undergoes load testing (horizontal/vertical load), anti-static testing (for workshop models), and anti-glare testing (for road models)—only qualified products are packaged.

Application & Service:

Municipal Road:2.5m×1.2m anti-glare models for median separation, reducing nighttime glare and guiding traffic.
Factory Workshop:2.0m×1.0m anti-static models for partitioning SMT (surface mount technology) areas, protecting precision chips.
Scenic Spot:1.5m-high 304 stainless steel models, ideal for trail edges. They're highly resistant to rain corrosion and wear from frequent tourist contact, ensuring lasting durability and aesthetic appeal.
